SPECIFICATIONS



Connector B: HDMI-compatible

Gender: Male-Male

Model Number: WL009

Package: Yes

Feature: None

Outer Diameter: 12.05*6.94*2.4

Certification: CE

Certification: FCC

Certification: RoHS

Certification: pse

Hign-concerned Chemical: None

Type: HDMI-Compatible Cables

Application: Computer

Application: Monitor

Application: Projector

Application: Television

Application: TV box

Application: Camera

Connector A: HDMI-compatible

Bundle: Bundle 1

Packing: Carton Box

Shielding: Non-Shielded

Name: wireless extender

Application: Church/Office/ Home/Party

Name: wireless transmitter and receiver

Name: wireless video transmitter

Latency: 0.06S Low Latency

Instructions: Plug and play, no drive or APP needed

Transmission Range: 820ft/250m

Compatible Devices: Projector, Laptop, Monitor, Television, Personal Computer









Excellent Function



-Ultra-long Transmission Distance
1080P transmission infrared return audio synchronization, breaking the limitation of transmission distance, no complex cable or wire installation, saving renovation costs.

- 1080P Wireless Transmission
Enjoy out signals to a TV in another room without the need for an additional cable box, plug and play, no drivers to install.

-1080P picture quality
Support 1080P@60Hz resolution, support 60 times per second picture update frequency, clear and natural playback, smooth and clear picture.

-Compatible with various devices
Laptop, PC, Video camera. MacBook, AV Receiver, Game Console, PS4/5, Xbox, Switch, Cable/Satellite, etc.

- 5.8Ghz wireless transmission with dual antenna design improves the quality and reliability of the wireless signal.

- Built-in ESD electrostatic protection circuit to protect system safety in all aspects.

- Support 20-60KHz frequency infrared transmission back, with local loop-out function.



Installation Steps



1.First connect the cable, the signal source connect Sender (transmitter) IN input; local display device connect Sender(transmitter) OUT output.
2.Then connect the receiver to a remote display device (such as a television, a splicing screen and so on).
3.IR remote control function: pay attention to the infrared head of the sender should face and close to the signal source.



Transmission distance



1 TX to 1 RX transmission distance: 250m;
1 TX to 2 RX transmission distance: 230m;
1 TX to 3 RX transmission distance: 210m;
1 TX to 4 RX transmission distance: 190m;



Resolution supported



1080p@50Hz /1080p@60Hz/ 1080p@24Hz / 1080p@25Hz / 1080p@30Hz / 720p@50Hz / 720p@60Hz / 576i@50Hz / 480p@60Hz



Noted:

1.Transmission distance will vary depending on the environment. Walls, bricks or glass may shorten the signal coverage or cause obvious signal loss.

2.TX=Transmitter, RX=Receiver, RX or TX cannot work alone.



3.Users need to pair themselves as needed to allow multiple expander RXs to be used.

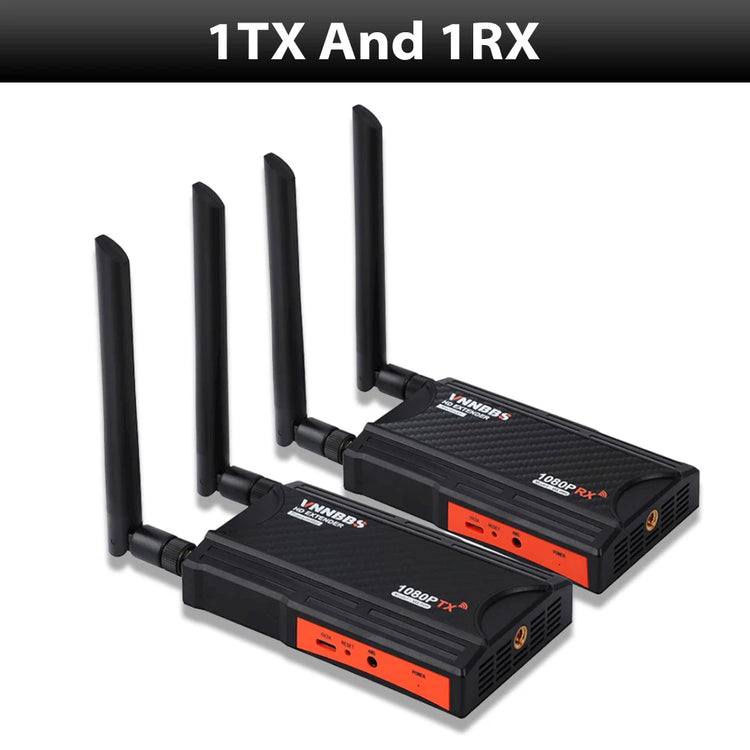

Package List

1 TX 1 RX



Wireless Transmitter * 1

Wireless Receiver * 1

Antenna * 4

5V 2A Power Adapter * 2

USB Power Cable * 2

IR cable * 2

User manual * 1



Note: if you choose "Only TX ", it comes the accessories is for 1 TX only, NO RX's



Package Content for the option of " Only RX " :

250m Wireless Receiver x 1

Antenna x 2

5V 2A Power Adapter x 1

USB Power Cable x1

IR cable x 1

User manual x 1



Note: if you choose "Only RX ", it comes the accessories is for 1 RX only, NO TX's



Noted:



Users will need to pair devices as needed to allow the use of multiple expander RXs.





wireless transmitter and receiver for DSLR Camera







Audio input/output

Support audio input and output, you can monitor the live sound remotely



Plug and Play

No driver software required.more Convenient To Use



Packing List
