SPECIFICATIONS





MIYOO Model: mini

Supporting Language: English

Supporting Language: Simplified Chinese

Supporting Language: Traditional Chinese Style

Category: Handheld Game Players

Games included: 0

Hign-concerned Chemical: None

Screen Resolution: 640x480

Display Size: 3.5"

Games Type: retro

Battery Capacity[mAh]: 3000

Package: Yes

Bluetooth-compatible: no

Screen Type: IPS

Certification: CE

Wi-fi: YES

Charging Interface Type: TYPE-C

CPU: ARM Cortex-A7 dual-core 1.2G

Memory: 128MB

Storage expansion: 32GB MicroSD (TF) Card Supports a maximum expansion of 128GB

Operating system: Linux

Sensor: Vibration motor

Power: 3.7V 3000mAh / 5V Charging interface supports 1A

Gift accessories: 64GB TF Card X1,screen protection X1 USB type-C data cable X1,Card reader X1,Manual x1.

Specifications: 108mmX78.5mmX22.3mm

Weight: 162g

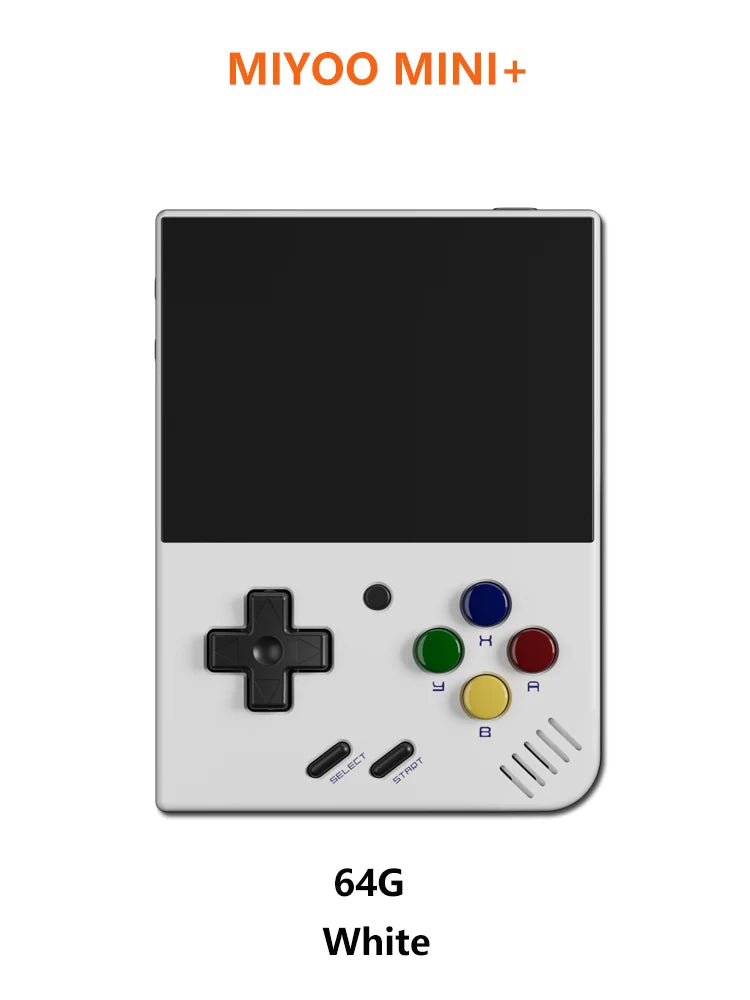

Model:	MIYOO Mini+	Screen size:	3.5-inch IPS screen
Memory:	128MB	Operating system:	Linux
Sensor:	Vibration motor	Color:	Grey , white，Black,purple
Specifications:	108mmX78.5mmX22.3mm	Weight:	162g
CPU:	ARM Cortex-A7 dual-core 1.2G
Storage expansion:	32GB MicroSD (TF) Card  Supports a maximum expansion of 128GB
Power:	3.7V 3000mAh / 5V Charging interface supports 1.5A
Gift accessories:	64GB TF Card x1, USB type-C data cable x1, Card reader x1, Manual x1.Screen protector x1

Question answering :

Start using

1. Insert the TF card that has been installed with the game into the TF card slot;

2. Charge the equipment to ensure normal startup;

3. Start Up: press the power key for 1 seconds.



How to install games?

1. Take the TF card out of the machine,insert the card reader to connect to
the computer,

and copy the "Game ROM" to the folder of the corresponding game type in the TF card;

2. Insert the TF card into the TF card slot,Press [MENU] to open the MENU, and select "Refresh ROM".



On-off

Boot: long press the power supply for 1 seconds

Shutdown: press the power supply for 3 seconds to open the shutdown menu, and press [A] to shut down.



Idle mode, sleep mode,and wake up

60 seconds no operation enters the idle mode, and the screen becomes dark;

In idle mode, press any button to wake up;

No operation for 5 minutes or short press the power key to enter the sleep mode, close the screen and sound,

and automatically shut down after 10 minutes without operation after entering the sleep mode,

You can set the sleep time or disable sleep in the settings options;

In sleep mode, press the power key to wake up.



Firmware Upgrade

1. Shutdown status.

2. Place the Mirror file in the root directory of the TF card,

Insert the TF card slot and connect the charging line to enter the charging mode, and the nautomatically

start up and upgrade.

Do not power off during the upgrade.



Start using

In the game catalog, select a game and press[A]Start the game.



Exit the game

In the game, Press [MENU] to open the MENU, select the "Exit" option, and press [A] to Exit the game.



Save or read game progress

In the game, Press [MENU] to open the MENU, select the "Save" or "Load" option,

press the direction key [LEFT, RIGHT] to select the recording position, press [A] to

save or read the current progress. A game can save up to 10 records.



Set

Press the arrow key [UP,DOWN] to select the setting items: screen brightness,

volume, sleep time, which can be modified by the direction key [LEFT, RIGHT];

Select setting items: Language, key mapping,

System Restore, etc., and press [A] to enter the corresponding setting page.



Pay attention to the following security precautions when using it

Do not spray any liquid on the machine body to avoid damage caused by liquid entering the machine;

Do not modify, repair or disassemble the product;

Do not use any diluent or volatile liquid to clean this product;

Avoid exposure to high temperature or direct contact with flame.
